Garage door operator 2110 pro+
2110 pro+922,5MHz SOMMER-Ausf. US-EN US-ESblack power plug USincl. 1x S10250-00003
Article number: S10255-00001
SOMMER pro+
- Motor carriage with integrated radio receiver (FM 922,5 MHz SOMloq2, 40 radio memory positions)

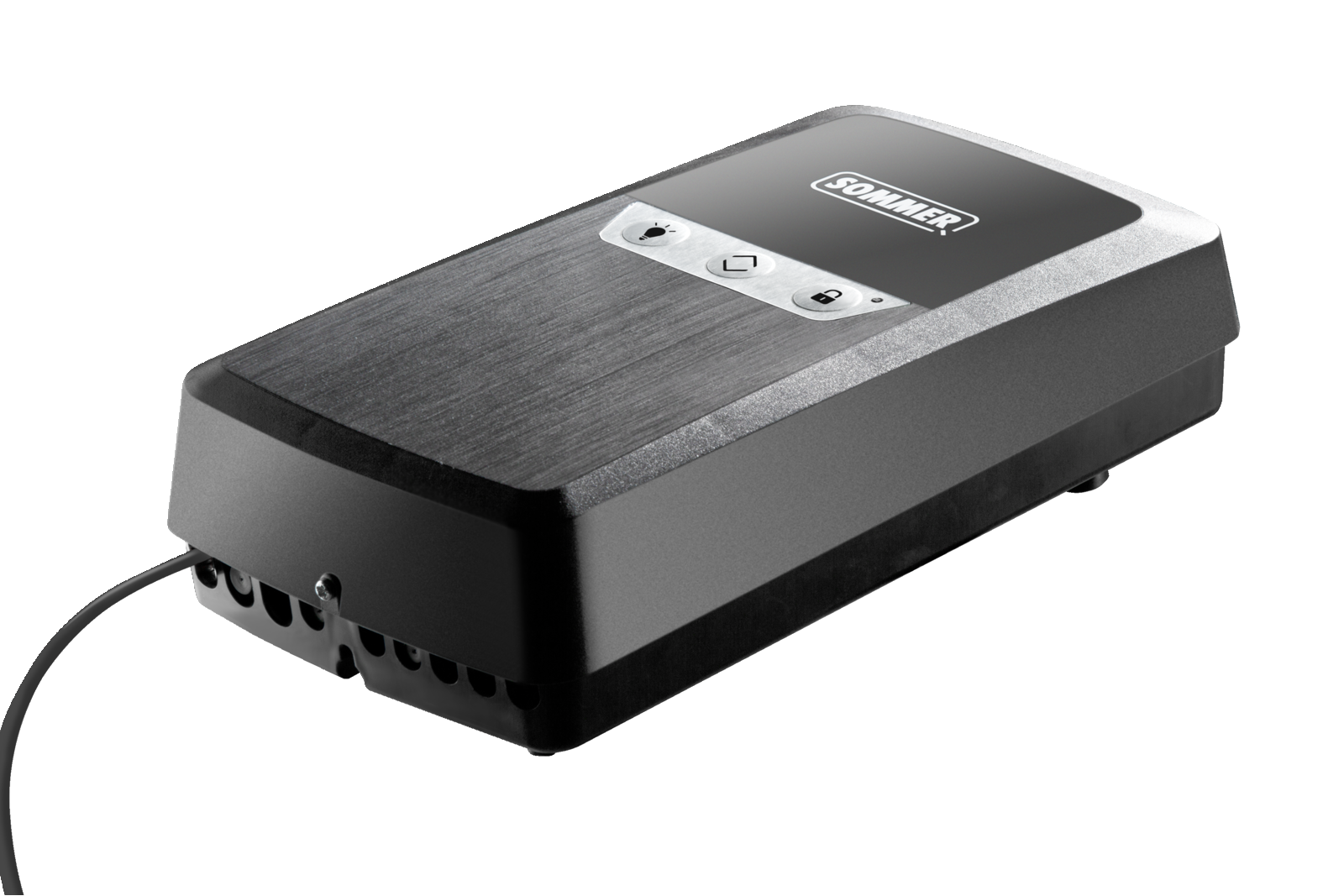

- Control unit housing with two integrated interior push-buttons
- Pre-programmed Pearl 4-command handheld transmitter (# S10250-00003)
- LED lighting in the motor carriage
- 3-piece rail, motor carriage, control unit housing, ceiling suspension unit, attachment to header, push arm, door bracket and mounting material
- 1100 Newton Motor (1.25 HP equivalent)
- 3-piece c-channel rail for doors up to 8' tall
- One 4-button Pearl transmitter included
- Wired safety sensors
- Remote-mount control housing with integrated buttons
To the Shop
Language
English
English
Type
PDF
Size
35.67 MB
35.67 MB
Language
Spanish, English
Spanish, English
Type
PDF
Size
35.67 MB
35.67 MB
Language
English
English
Type
PDF
Size
288.58 KB
288.58 KB
2-/4-wire photocell connection, door CLOSE, DC 24 V
Battery pack slot
Buzzer slot
Keypad slot for foil keypad pro+ / Conex
Laser slot
Light slot for additional LED lighting Lumi+ / Lumi pro+
Lock slot
Memo slot
Motion slot
OSE/8k2 connection
Pulse button connection
Senso slot
Slot Relay/Output OC
Wall control unit
Wicket door contact connection
