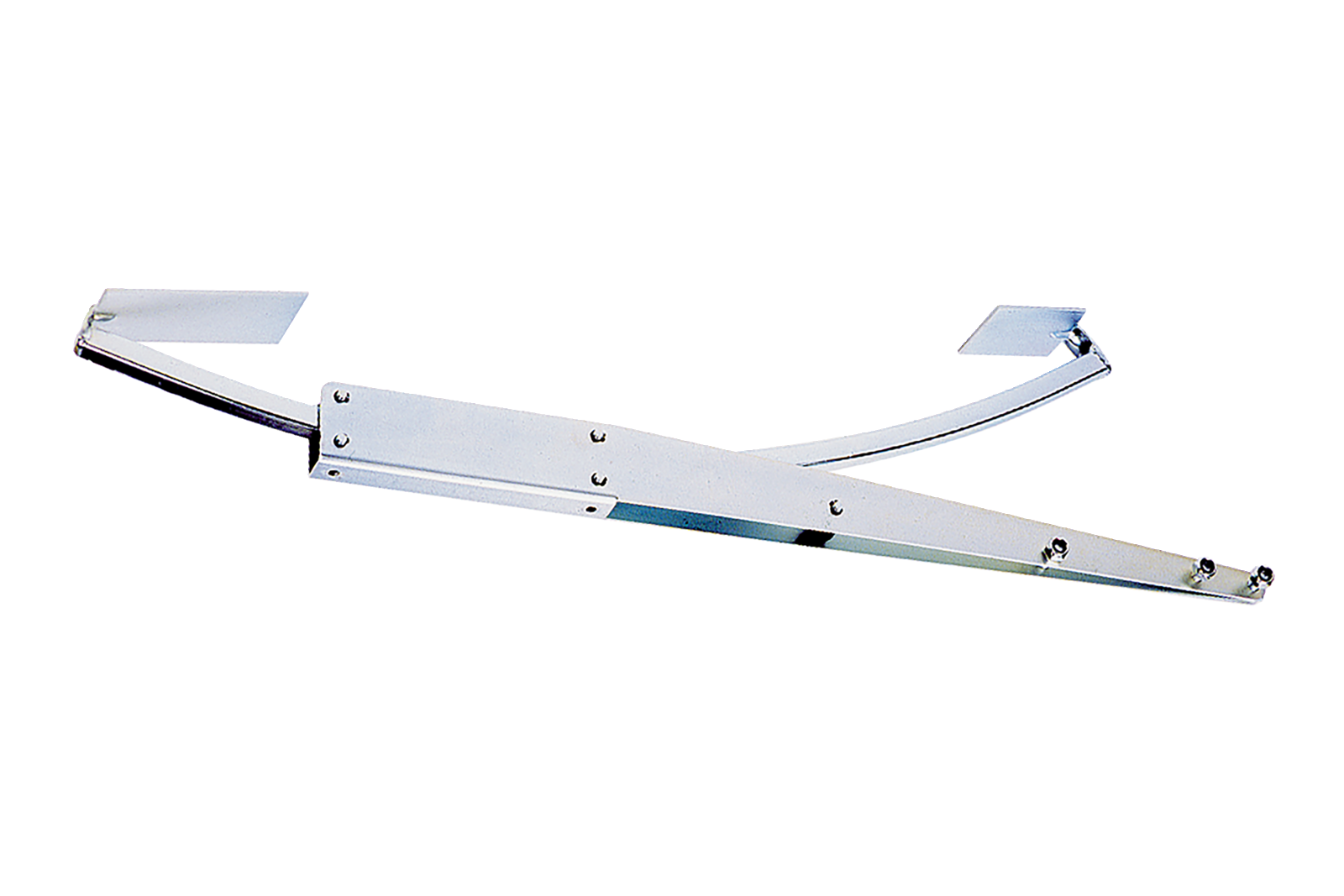

Curved arm

bow arm converterfor canopy doors

Article number: Y1500V000

Properties

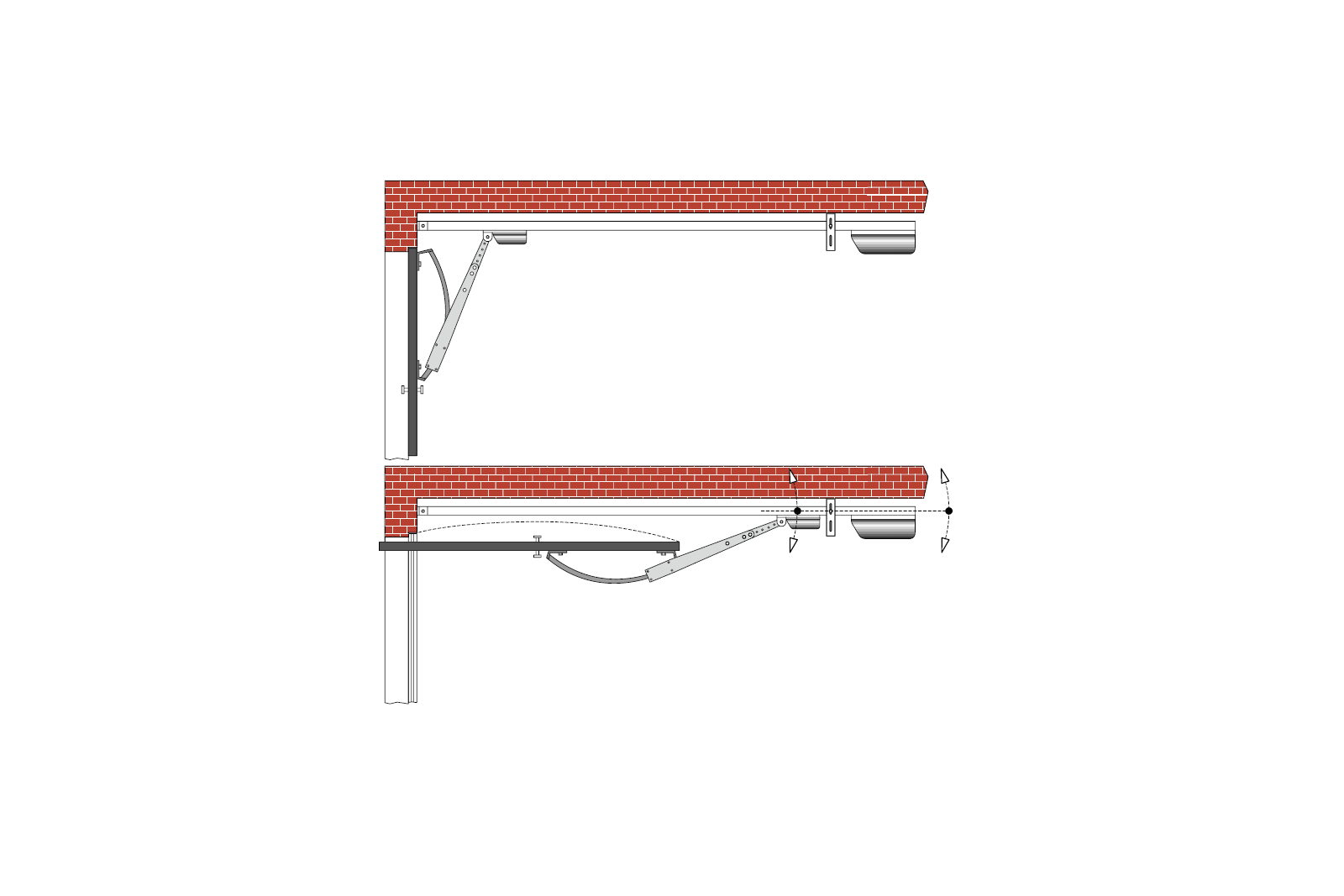

For installation on doors with perpendicular guide rail (up-and-over doors)
The drive-through height is reduced by 170 mm.
Travel length may be up to 700 mm shorter!

Downloads

Assembly Instructions

Language
German, English, French, Italian, Spanish, Polish, Hungarian, Russian

Type
PDF

Size
118.19 KB
