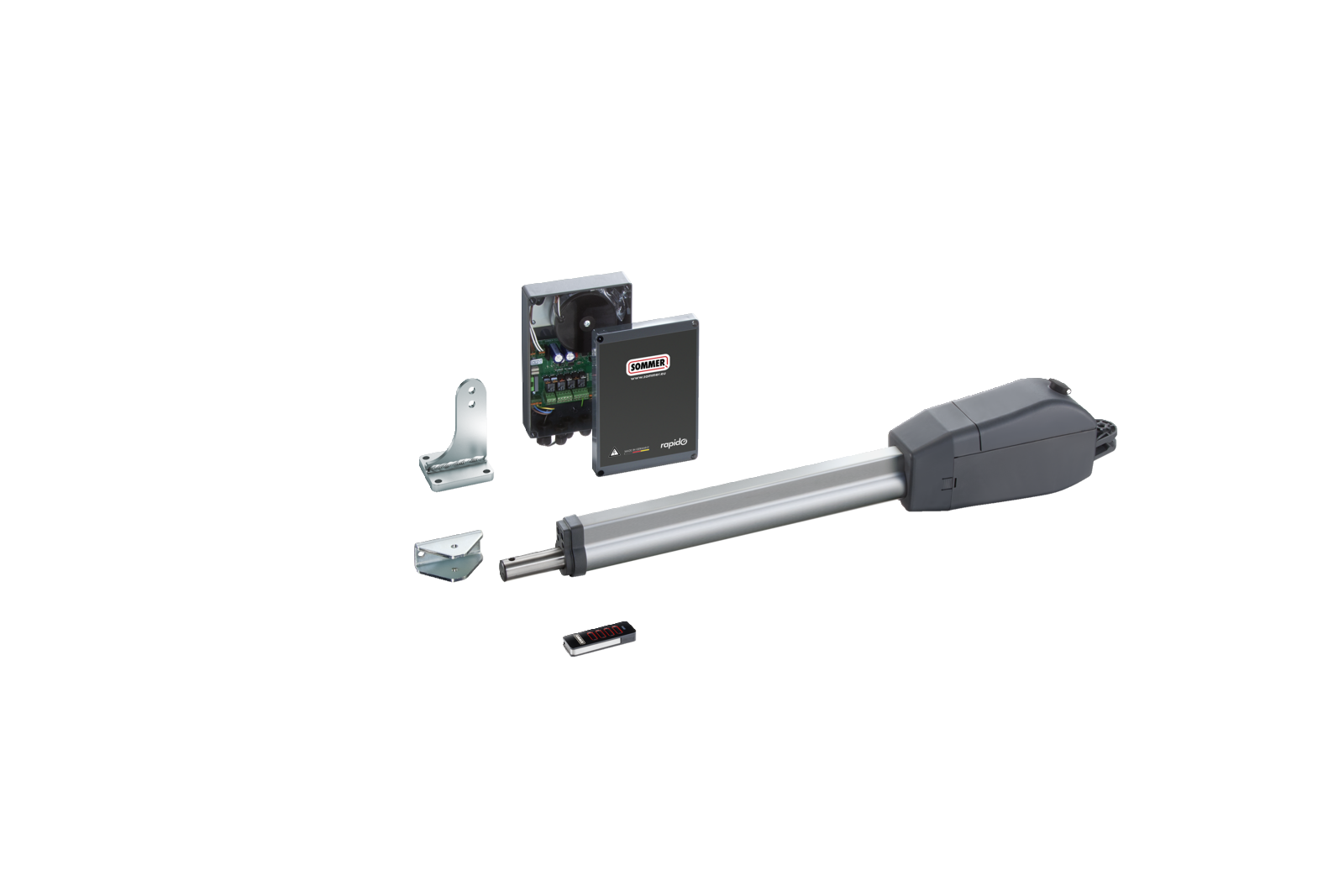

Swing gate operator twist 350 rapido set 1-leaf
Swing gate operator twist 350 rapido set 1-leaf
twist 350 rapido set 1-leaf
868,95MHz SOMMER version
anthracite power plug Schuko
incl. 1x 4019V000
Article number:
S12712-00001
Properties

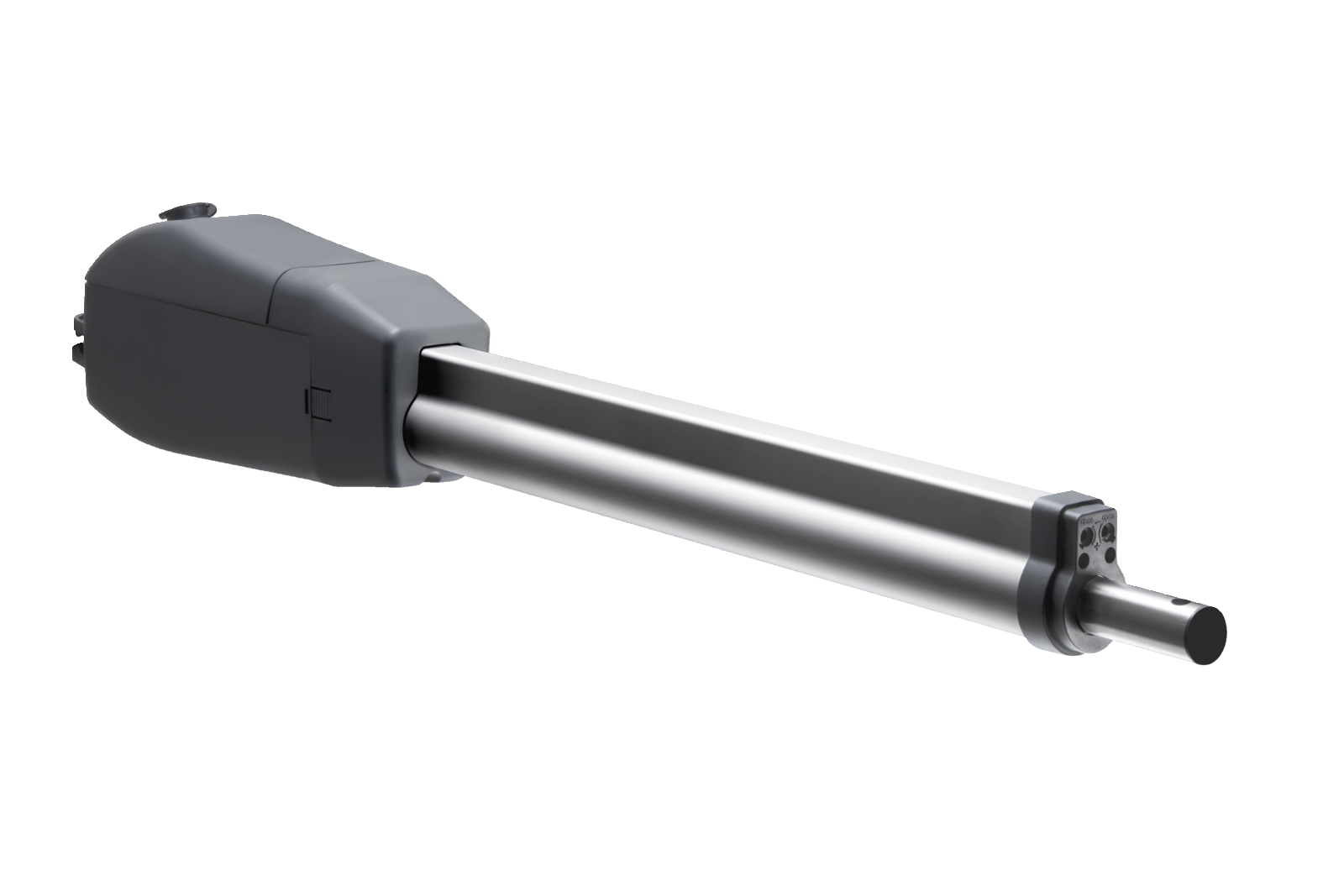

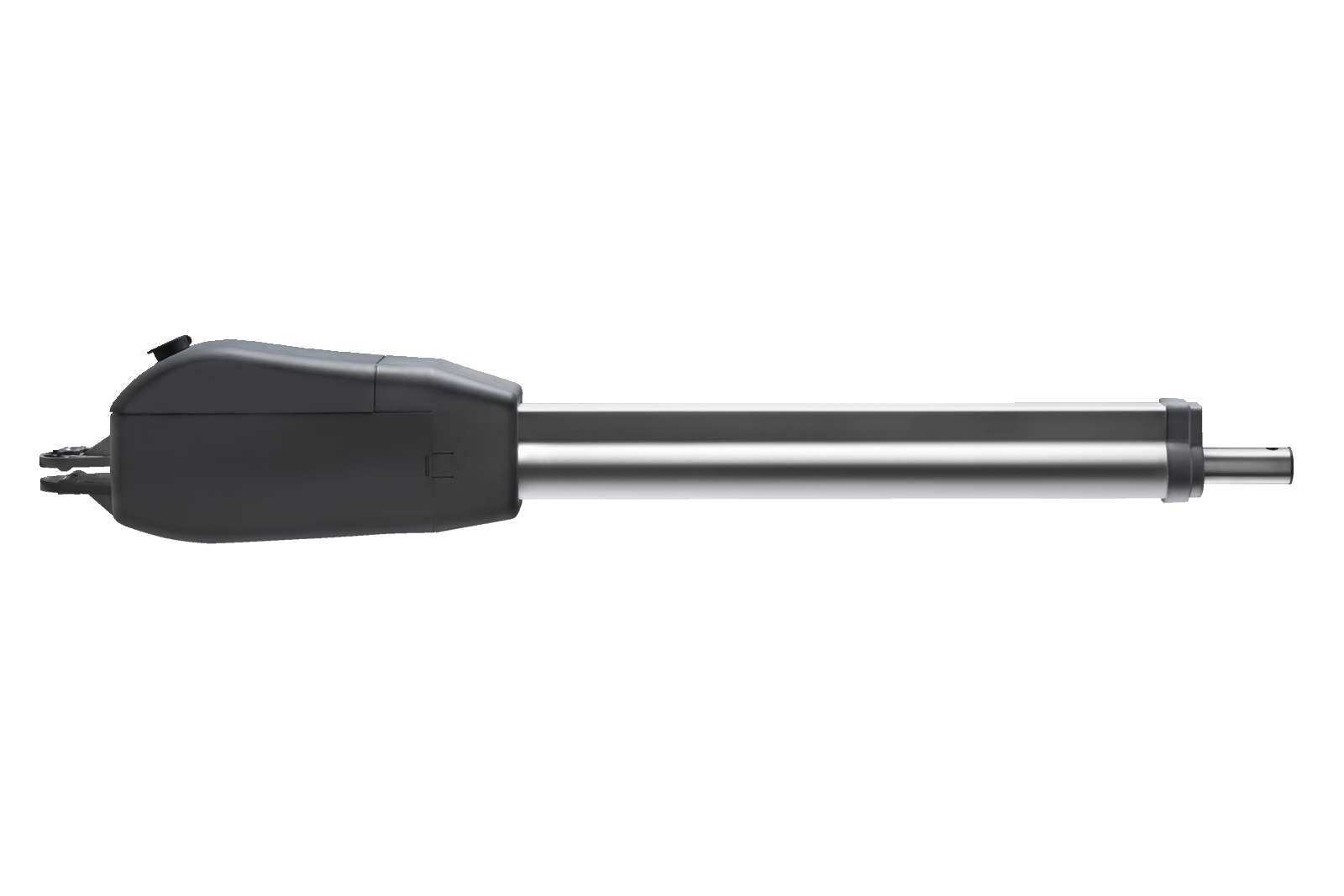

twist 350 rapido swing gate operator (can be used universally for DIN left and DIN right)
Post and gate leaf fitting
Control unit DTA-1 in housing (IP65), Dimensions: 250 × 175 × 75 mm
SOMup4 S2 radio receiver (FM 868.95 MHz SOMloq2, 40 radio memory positions), pluggable
Slot for Memo memory extension (450 radio commands)
Pearl Vibe 4-command handheld transmitter (# 4019V000) with noticeable feedback of radio commands via vibration
Transmitters can be programmed and deleted and information on the radio receiver viewed via the SOMlink S2 service interface.
Downloads
Checklist
Language
English, Hungarian, Italian, Dutch, Polish, Russian, Swedish
Type
PDF
Size
420.46 KB
Assembly Instructions
Language
English
Type
PDF
Size
9.92 MB
CadData
Language
English, German, French, Hungarian, Italian, Dutch, Polish, Russian, Swedish
Type
ZIP
Size
9.43 MB
Additional information on the motor connection
Language
English, German, Italian, French, Spanish
Type
PDF
Size
269.37 KB
Related accessories
4-command handheld transmitter Pearl Vibe
Electric lock (DC 24 V)
Memory extension Memo
Screw connection M16 x 1,5
Cylinder for electric lock
Post bracket 60/120
Post bracket 60/120
Connecting cable set for twist 350, twist XL, twist UG and twist AM
Fall protection Safeguard
Photocell One-way photocell, can rotate 180°, 2‑wire
