Swing gate operator twist ML Set 2-leaf
The powerful swing gate operator for gates with a leaf width of up to 2.5 m.
Article number: S13697-00001
Max. gate weight
300 kg
Max. gate leaf width
2,500 mm
Max. gate inclination
10 %
Max. gate filling
100 %
Rated voltage range 1
220-240 V
Rated frequency
50-60 Hz
Motor voltage
DC 24 V
Max. Thrust speed
16.5 mm/s
Max. Opening angle
130 °
Number of radio channels
2
Duty cycle after S3 in %
ED 15% S3
Protection class
IP44
Protection control unit
IP65
Temperature min.
-25 °C
Temperature max.
65 °C

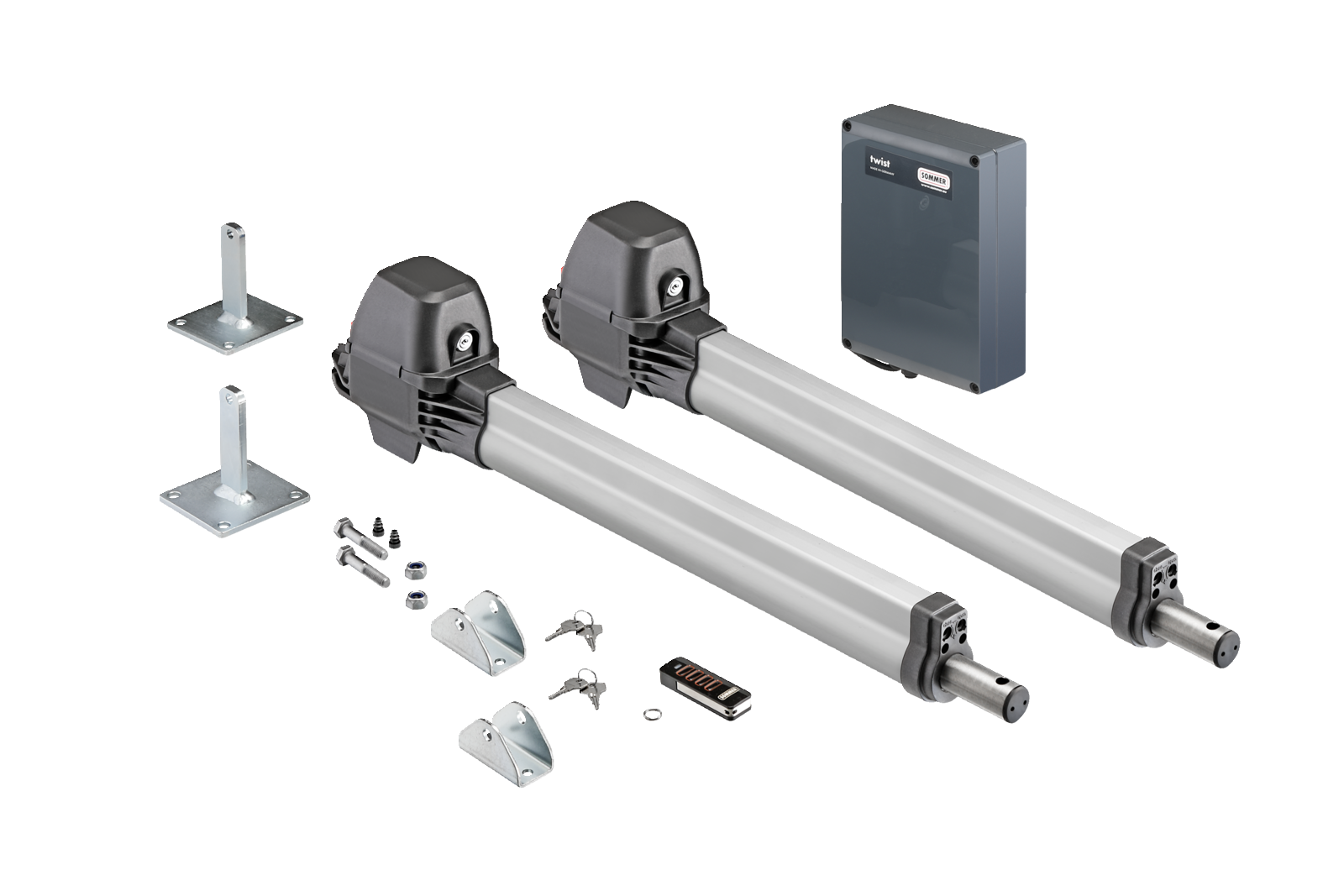

- Two twist ML swing gate operators (can be used universally for DIN left and DIN right)
- Post and gate leaf fittings
- Control unit DST-A 24 in housing (IP65), Dimensions: 250 × 175 × 75 mm
- SOMup4 S2 radio receiver (FM 868.95 MHz SOMloq2, 40 radio memory positions, antenna connection), pluggable
- Slot for Memo memory extension (450 radio commands)
- Pearl Vibe 4-command handheld transmitter (# 4019V000) with noticeable feedback of radio commands via vibration
- Transmitters can be programmed and deleted and information on the radio receiver viewed via the SOMlink S2 service interface.
Battery pack slot
Connection of 4-wire photocell
Connection safety contact strip: With external value unit
DC output
Electric lock connection
Memo slot
Potential-free relay contact
Warning light connection
