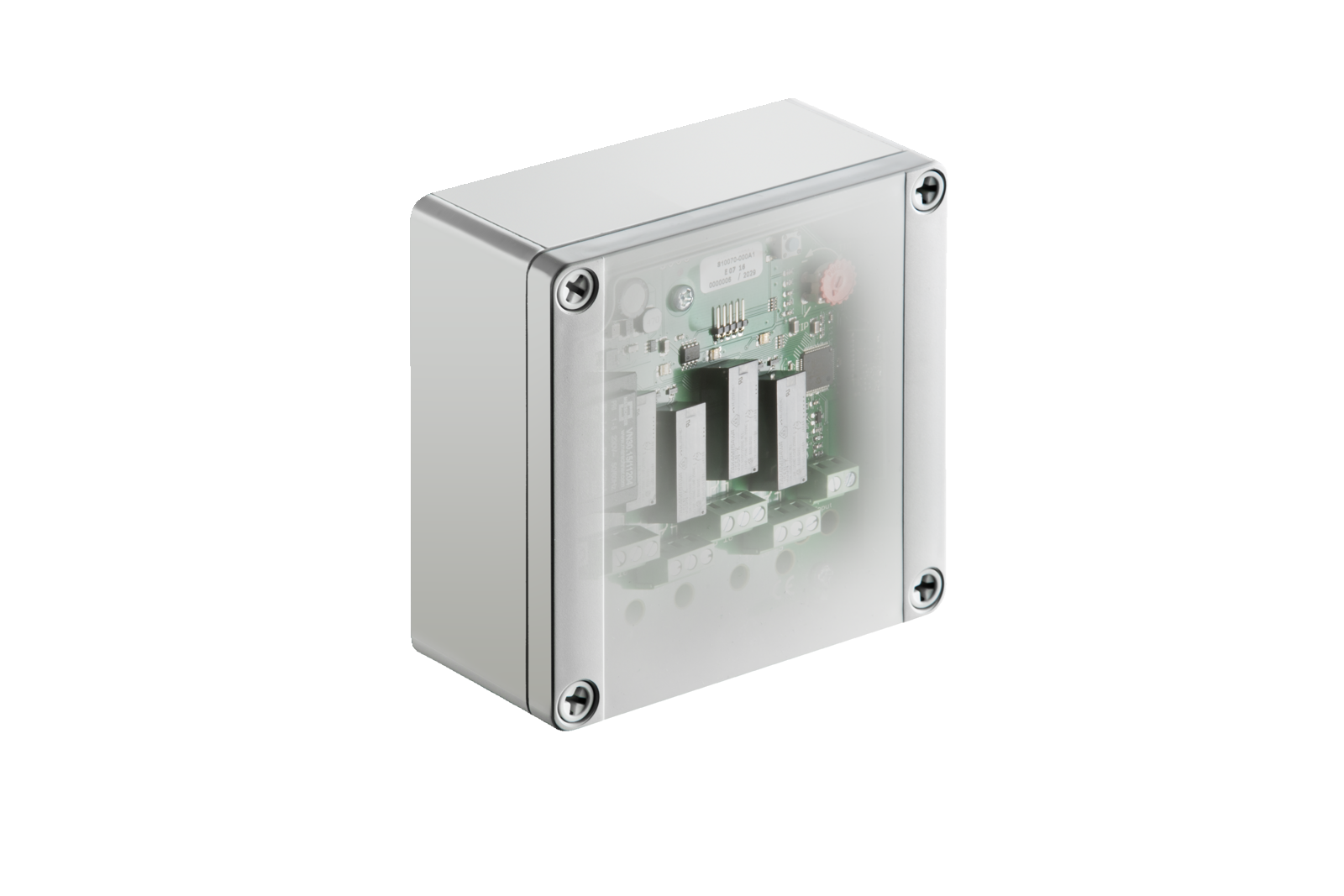

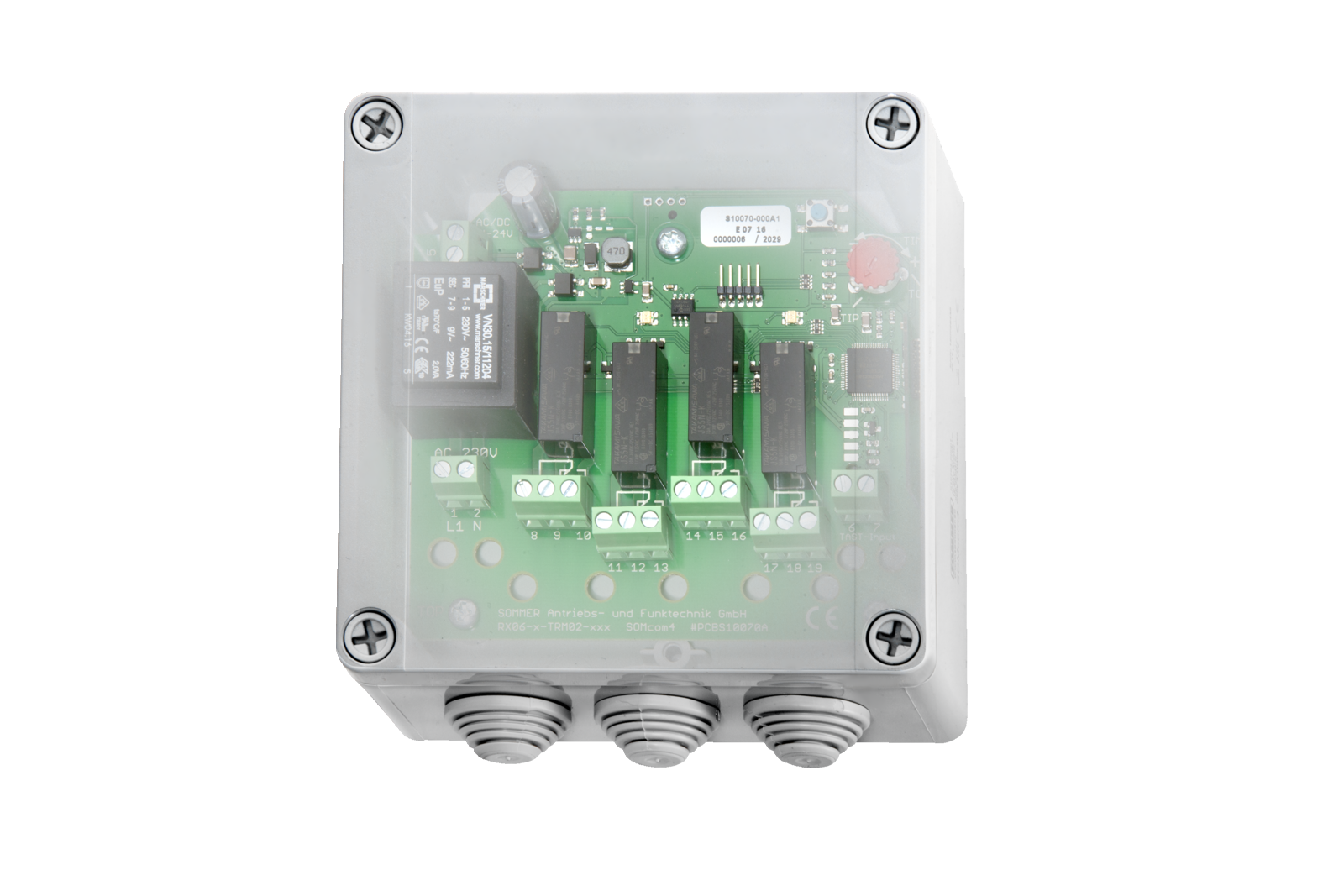

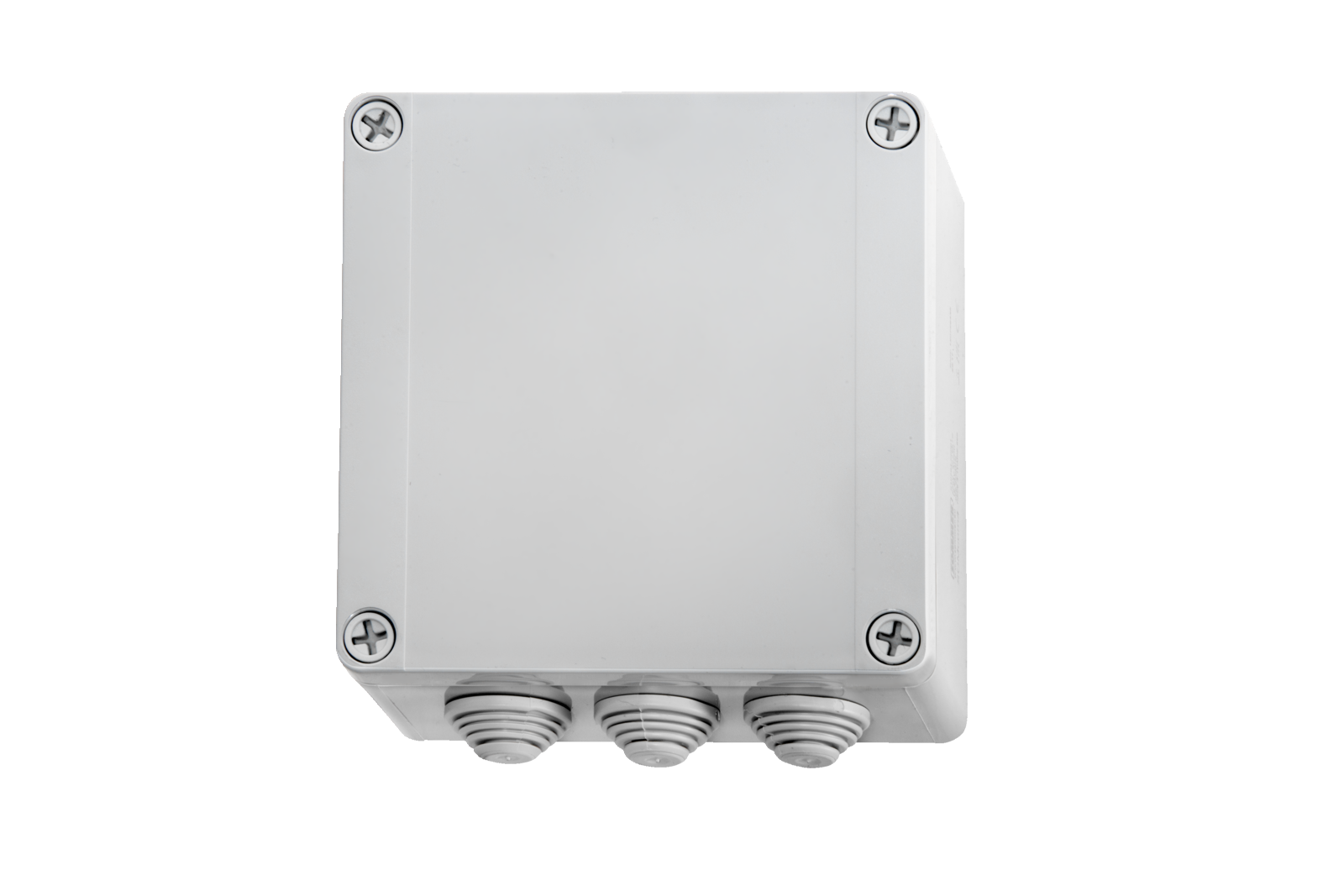

4 通道无线电接收器 SOMcom4 radio receiver

产品编号: S10794-00001

技术参数

无线电系统

SOMloq2

无线电频率

868.95 MHz

无线电存储位置

40

无线电频道数量

4

额定电压范围

12-24 V

最低温度

-20 °C

最高温度

65 °C

零件尺寸

125x125x60 mm

特性

Simple conversion of external operators and easy changing of the radio frequency
Suitable for special applications (not suitable as tubular motor controller)
Optional feedback via transmitter when the sent command has been processed by the receiver
Option of channel relay status query via transmitter (e.g. Pearl Status)
Ideal as substitute for a rod antenna: increase in range due to hop function. There is no need to programme transmitters on the radio receiver.
Integrated antenna
Memory: 40 radio commands can be programmed

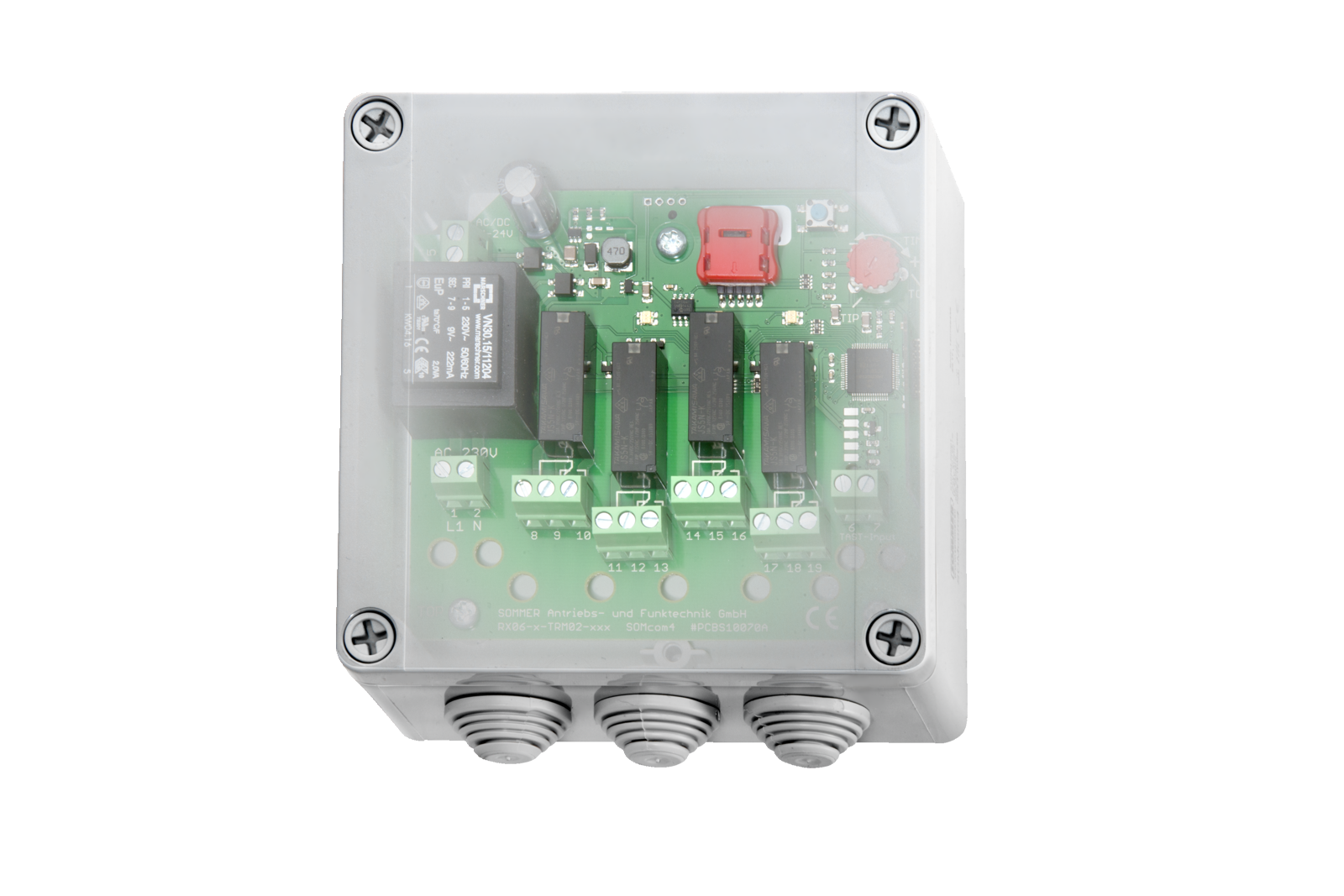

Slot for Memo memory extension (450 radio commands)
Power supply: AC 230 V or AC/DC 12–24 V ±20 %
Area of application: indoor and outdoor use
Control output: 4 potential-free relay contacts (change-over, 8 A, AC 250 V)
Pulse input: connection option for a potential-free pulse input
Connection: screw terminals
connectible cable: up to 2.5 mm² diameter
Temperature range: -25 °C to +65 °C
Dimensions: 125 × 125 × 60 mm
Operating mode:
– Impulse mode (jog): Relay activated as long as radio signal is present
– Defined ON/OFF: command for defined switch-on and command for defined switch-off
– Switching mode (toggle): Relay can be switched on and off via radio control system, like a surge relay
– Timed mode (Time): Relay is triggered with radio signal and deactivated after set time (1–255 s)
