More comfort & safety through our radio system
Radio receiver
Whatever you want to control
SOMMER receivers make it easy for you.
SOMloq2 - modern, bidirectional radio control system
SOMloq2 is our future-proof radio system in line with modern standards. With 128-bit AES encryption, high transmission security is guaranteed.
The bidirectional radio enables numerous additional functions that make everyday life easier – from feedback on whether the radio signal has been received to gate status queries or auto repeat and hop functions.
Our radio transmitters and receivers allow you to control your systems conveniently and profit from the additional functions of the SOMloq2 system.
HomeLink radio receiver module
The radio receiver module allows you to control operators and control units with the radio system SOMloq2 via the HomeLink transmitter integrated in a vehicle.
- Plug & Play installation via serial interface on the motor carriage
- simple programming directly at the operator
For further information, see www.homelink.com
Compatibility
HomeLink version EURO 2 from year of manufacture approx. 2005
Garage door operators SOMMER base+, SOMMER pro+, tiga, tiga+ from software V03.03 / year of manufacture 05.2017
SOMup4 S2 (4-channel)
This bidirectional radio receiver module is suitable for the simple conversion of operators and control units with radio receiver # 7000VXXX to the SOMloq2 radio control system (twist 200 E/EL, twist 350, twist XL, RUNner, RUNner+, SP 900 and GIGA industrial gate control units).
- Optional feedback via handheld transmitter when the sent command has been processed by the receiver
- Antenna: integrated
- Memory: 40 radio commands can be programmed
- Slot for "Memo” memory extension (450 radio commands)
- Connection: 20-pin contact strip
- Active forwarding of the radio signal by SOMloq2 receiver (hop function)
- Compatible with SOMlink S2
- Mode of operation
- Impulse mode (Jog): relay activated as long as radio signal is present
- Defined ON / OFF: command for defined switch-on and command for defined switch-off
SOMcom4 (4-channel)
The bidirectional radio receiver allows simple conversion of external operators and easy changing of the radio frequency.
- Optional feedback via handheld transmitter when the sent command has been processed by the receiver
- Option of channel relay status query via transmitter (e.g. Pearl Status)
- Suitable for special applications (not suitable as tubular motor controller)
- Antenna: integrated
- Memory: 40 radio commands can be programmed
- Slot for "Memo” memory extension (450 radio commands)
- Connection: screw terminals
- Area of application: indoor and outdoor use
- Control output: 4 potential-free relay contacts (change-over, 8 A, AC 250 V)
- Pulse input: connection option for a potential-free pulse input
- Active forwarding of the radio signal by SOMloq2 receiver (hop function)
- Compatible with SOMlink S2
- Mode of operation
- Impulse mode (Jog): relay activated as long as radio signal is present
- Defined ON / OFF: command for defined switch-on and command for defined switch-off
- Switching mode (toggle): relay can be switched on/off via radio control system, like a surge relay
- Timed mode (Time): relay is triggered via radio signal and deactivated after set time (1– 255 s)
SOMcom2.1 (2-channel)
The bidirectional radio receiver allows simple conversion of external operators and easy changing of the radio frequency.
- suitable for special applications (not suitable as a tubular motor control)
- 1 input for gate status to make incompatible operators SOMweb-capable
- feedback of the status of a sensor connected to the input or the relay using a transmitter (e.g. Pearl Status)
- integrated antenna; optional external antenna can be connected
- Memory: 40 radio commands can be programmed
- Slot for memory extension Memo (450 radio commands)
- Area of application: dry, closed rooms
- Control output: 2 potential-free relay contacts (normally open, 1 A, DC 30 V)
- Connection: 8-pin spring terminal
- Active forwarding of the radio signal by SOMloq2 receiver (hop function)
- Compatible with SOMlink S2
- Operating mode:
- Tap mode (Tip): Relay is activated as long as the radio signal is present
- Defined ON/OFF: Command for defined switching on and command for defined switching off
- Switching mode (Toggle): Relay can be switched on and off via radio like a surge relay (can only be set via SOMlink S2)
SOMsocket
This radio receiver in the power socket housing lets you switch between different applications and devices via radio control system with its installed bidirectional radio receiver.
- 112 memory locations
- Switching output max. 10A, voltage 100–240 V, 50/60 Hz
- Power-saving (standby 0.45 W)
- Manual switching of consumers possible via button on SOMsocket
- Active forwarding of the radio signal by SOMloq2 receiver (hop function)
- Status query by means of handheld transmitter (e.g. Pearl Status) to establish whether the connected consumer is switched on or off
- Compatible with SOMlink S2

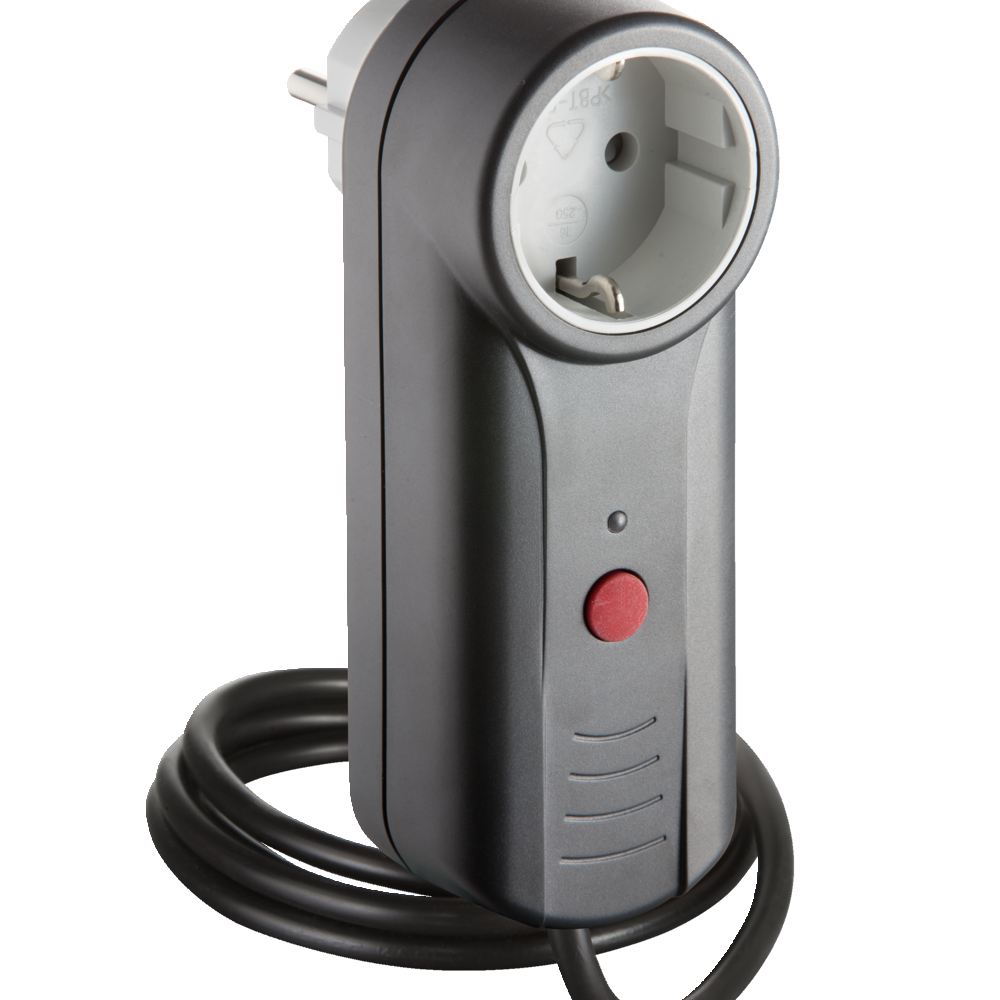

SOMplug
The bi-directional radio receiver in the “SOMplug” power socket housing is well-suited for easy conversion and retrofitting of gate operators to the SOMloq2 radio control system.
- 112 memory locations
- Potential-free relay output via 1.5 m cable for connection to the pulse input of the operator
- Switching output max. 3 A, voltage 100–240 V, 50/60 Hz
- Power-saving (standby 0.45 W)
- Active forwarding of the radio signal by SOMloq2 receiver (hop function)
- Compatible with SOMlink S2
