Roller door control unit
The optimum way to control roller doors
Roller door control unit from SOMMER

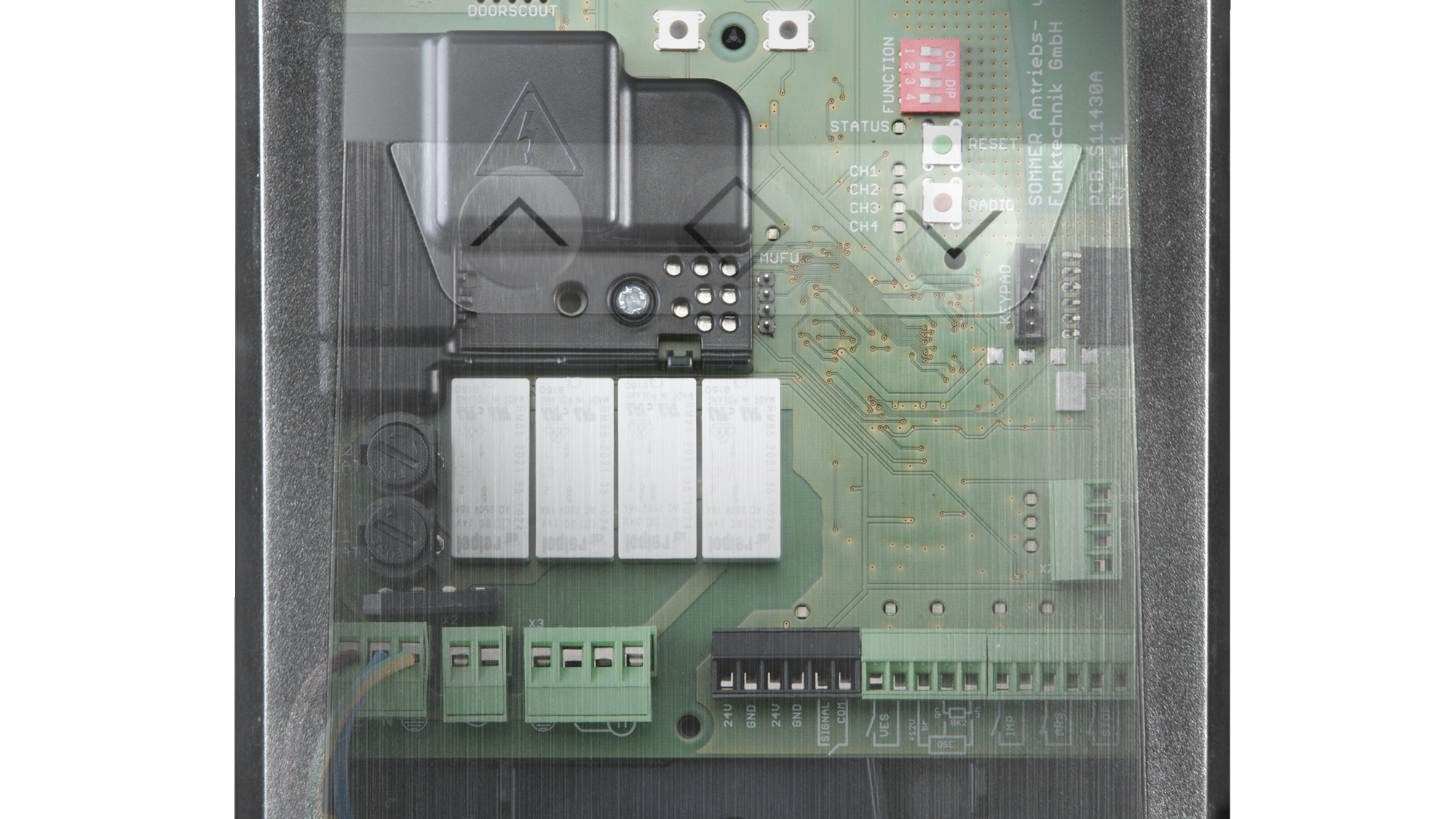

The SOMMER motor control unit RDC Vision+ is suitable for roller doors in both private and commercial areas. RDC Vision+ offers you a high level of convenience and safety, in operation as well as during installation and set-up. A wide range of settings and extensions offer completely new options.
Product advantages
Versatility
Universal roller door control unit for a wide range of roller doors with tubular motors up to 1000 watts, AC 230 V. The control unit is suitable for private and commercial use.
Quality
Thanks to integrated LED technology, the roller door control unit offers durable, energy-saving and efficient lighting. The RDC Vision+ is of the highest quality “Made in Germany.”
Safety
The RDC Vision+ is equipped with standard-compliant safety shutdown in accordance with Cat. 2, PLd and is TÜV type-tested. It features integrated evaluation of optical or 8.2 kOhm safety contact strips.
Convenience
Countless setting and querying options on the device and via the SOMlink S2 service interface and a fully automated learning process for run times facilitate installation. Pluggable connecting terminals allow convenient and reliable connection (cannot be interchanged).
Other benefits
- Lighting can be activated by radio
- Transmitter can be deleted selectively
- Defined "OPEN," "STOP" and "CLOSE” activation via radio, external or integrated 3-function pad
- Disabling of the roller door in combination with a frame photocell
- Simple and quick diagnosis via integrated LEDs on the connecting terminals and slots
Radio
- Bidirectional radio control system
- Individual function assignment during programming of the radio control system by the user: Pulse mode, partial opening or lighting function, defined OPEN/CLOSE
- Noticeable quality thanks to confirmation of the radio signal through vibration feedback (with suitable transmitter)
- Door status display
- Targeted light control unit
- Programmed at the factory
- Reduction of radiation exposure in spite of higher data throughput in package mode
- Increased reliability and range due to active forwarding (hop function)
- 128-bit AES encryption
- Auto-repeat function for convenient opening as you drive up to the premises
- Distance-dependent dead-man function for set-up mode
Connection options
- Safety edge (8.2 kOhm or optical)
- Pre-end position switch, e. g. reed contact
- Palm button for Emergency Stop
- Anti-drop device
- Buttons such as key switches and 3-function pad
- Photocell for protection in door Close (2-wire, 4-wire and frame photocell)
- External warning light 230V max. 40 W
Compatibility
RDC Vision+ is compatible with the following products.
- SOMweb from CW46/2020, Software version 01.40
- Delta Dore X3D-Modul from CW46/2020, Softwareversion 01.40
Additional equipment
With our additional equipment, you can generate your own optional added value. The modular system design enables you to expand the SOMMER door operator with numerous accessories according to the "plug and play" principle. All accessories can be easily assembled, as the slots are color-coded and labeled exactly.

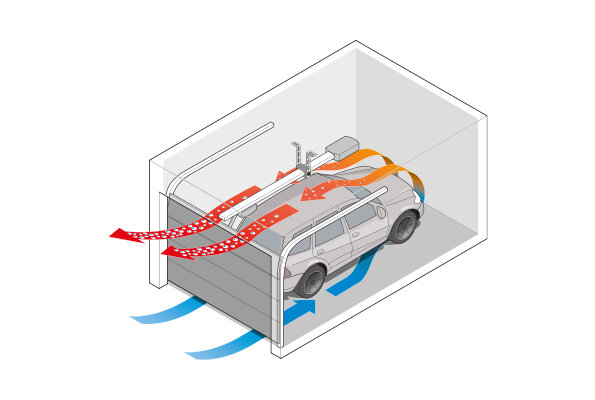

Senso
For recording temperature and air humidity in the garage. The carriage automatically opens the door a bit if necessary (e.g. when the air humidity is too high), ensuring perfect circulation. When the optimal value has been achieved, the door is closed, reducing the risk of mould formation.

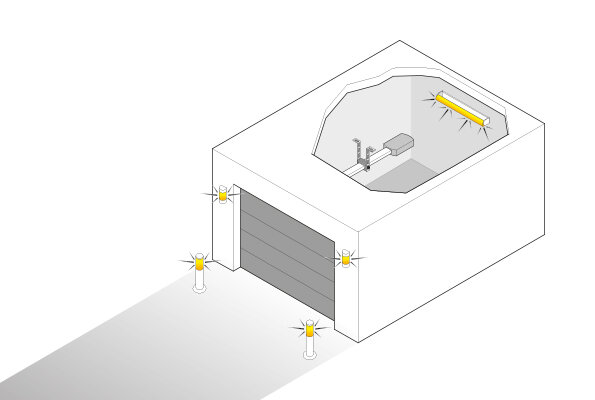

Open-Collector
Output OC
Transfers the door status (open/closed) to Smart Home systems. Optionally, a further external lighting unit can be operated.

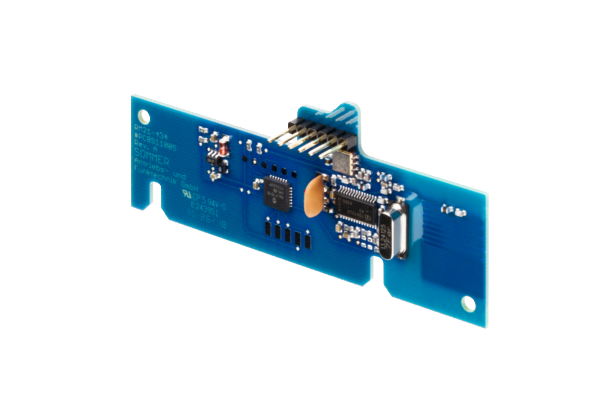

HomeLink radio receiver module
With the HomeLink radio receiver, the operator can be upgraded to the HomeLink radio control system. The operator can then be controlled with a HomeLink transmitter integrated in the vehicle.
Delta Dore X3D-Modul
The module Integrates the operator into the Delta Dore Smart Home system. This allows you to control and query the position of the operator via the Tydom app from Delta Dore.
Technical data
| RDC Vision+ | |
|---|---|
| Radio system | SOMloq2 |
| Radio frequency | 868.95 MHz |
| Radio memory locations | 40 |
| Rated voltage range 1 | 220-240 V |
| Rated frequency | 50-60 Hz |
| Protection class | IP21 |
| Temperature min. | -25 °C |
| Temperature max. | 65 °C |
| Part size | 288x160x75 mm |
